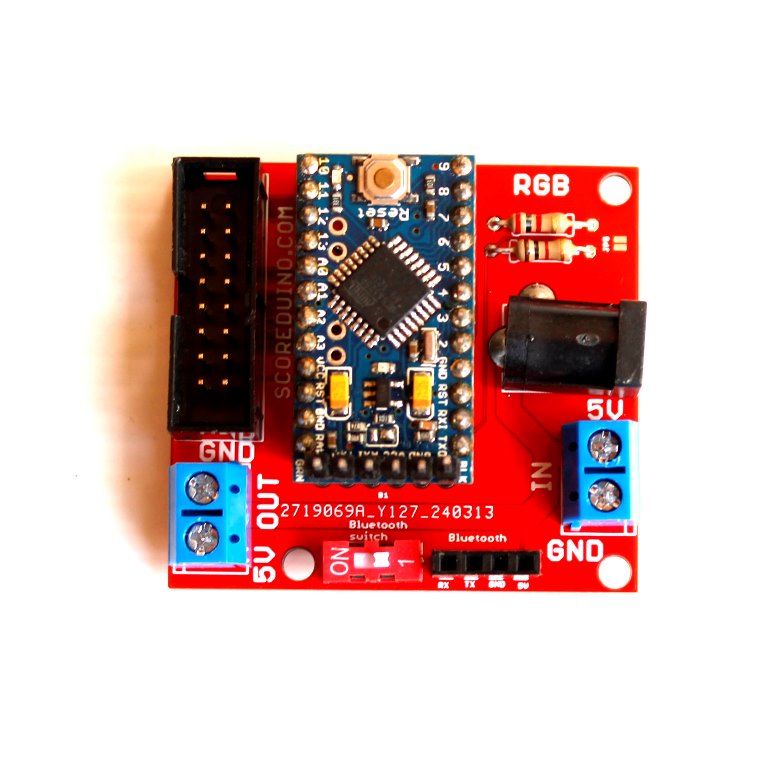

P10 and P6 RGB LED matrix display Controller using Clone Arduino Pro Mini

BUILDCIRCUITS Verified independent store

→

The Scoreduino RGB DMD Module, utilizing a Clone Arduino Pro Mini, is crafted to power P10 and P6 RGB displays, offering adaptable outputs for various uses. Every module is pre-loa ded with customized codes to cater to specific functionalities. It's important to bear in mind that each module is equipped to handle only one output, necessitating separate modules for multiple outputs. Output 1: LIVE Cricket Scoreboard. If you purchase this, write us in email which app do you use, cricclubs.com or playhq.com. Customers need to write in email, what do they use, cricclubs.com or playhq.com. If you use cricclubs.com, tell us your club id. We will make custom android app for one clubid only. The module communicates with the Scoreduino app, dedicated to downloading LIVE cricket scores from websites such as cricclubs.com, playhq.com. Developed by Scoreduino.com, the app seamlessly connects to the RGB module via Bluetooth. Once connected, the RGB displays immediately showcase LIVE cricket scores, including total runs, wickets, and overs. Display transitions between total runs, wickets, and overs, with each statistic shown for 2 seconds before displaying all together. It supports only these two displays: 1. P10 RGB display 2. P6 RGB Display Output 2: Football Scoreboard with timer The RGB display transforms into a football scoreboard, complete with a timer. Timer color is RED and left score is GREEN and right score is BLUE. Users can set up and operate the scoreboard using the Scoreduino app. Bluetooth serves as the communication medium between the phone and Scoreduino module. It supports only these two displays: 1. P10 RGB display 2. P6 RGB Display Output 3: Digital Timer Exclusively showing a digital timer, this output is ideal for various timing applications. Users can easily set up and start the timer directly from the Scoreduino app interface. Bluetooth facilitates seamless communication between the app and the module. It supports only these two displays: 1. P10 RGB display 2. P6 RGB Display Outout 4: Basic Scoreboard Digital scoreboard without a timer. The team names are shown as A and B. Update scores using the Scoreduino app. Displays the Scores in two colors- RED left and BLUE Right. Bluetooth enables smooth communication between the app and the module. Each Scoreduino RGB Module offers a convenient and user-friendly solution for displaying dynamic content tailored to specific needs, whether it's for cricket scores, football matches, or timing purposes. Package includes: 1 x RGB DMD Scoreduino Module 1 x Chinese clone Arduino pro mini- Programmed We do not share the sketches/codes of our scoreboards Show more
